Ma-12×2000 Leveling 4mm Sheet Metal Cut To Length Machine

1. Product description:

Sheet Metal Cut To Length Machine MA-12×2000 Cut To Length Line Leveling machine

2. Technical specifications:

a. Applicable leveling material: ordinary carbon plate

b. Applicable leveling sheet thickness: 4.0 ~ 12.0mm

c. Applicable leveling width: 900 ~ 2000mm

d. Machine feed clear width: 2100mm

e. Applicable inner diameter of drum plate : Ф 508mm- Ф 760mm

f. Applicable outer diameter of drum plate : Ф 1100~ Ф 2000mm

g. Applicable drum plate weight: ≤ 35 t

h. Stacking length: ≤ 8000mm (any fixed length)

i. Sizing accuracy: ≤± 2.0mm/2M

j. Diagonal accuracy: ≤± 2.0mm/2M

k. Leveling accuracy: ≤ 1mm/m2 (corrugated and other defective plates are not included in the assessment scope)

l. Operating speed of unit: Vmax ≤ 25m/min. (adjustable)

3. Equipment composition:

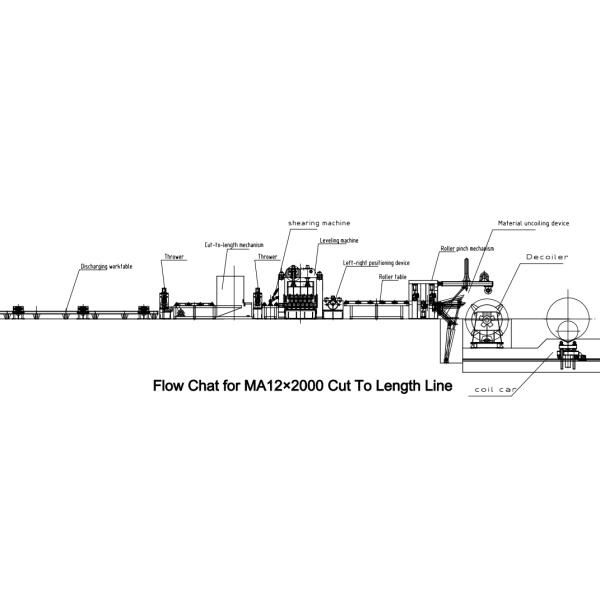

4. Process flow:

5. Photo for reference:

6. Packaging:

Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.

7. Warranty term: 12 months (excluding easy-broken parts)

8. Our service and features:

8.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
8.2 This is a very perfect and durable equipment. We have more than 10 years experiences.

8.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.

8.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
8.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
